Slow response on smartconsole and unresponsive

Hi All,

I am experiencing an issue on my Smartconsole R81.20 and unresponsive, I have also observed that I am unable to access the Global properties and SmartEvent Settings & Policy. I have recently upgraded from R81 to R81.20.

Screenshot 2023-03-29 174332.png

Regards,



0 Kudos
11 Replies
Chris_Atkinson
Employee Employee
Employee

For context how many Gateways does this environment manage and is there any JHF applied to the machine currently?

CCSM R77/R80/ELITE
0 Kudos
Salom_Idhogela
Collaborator

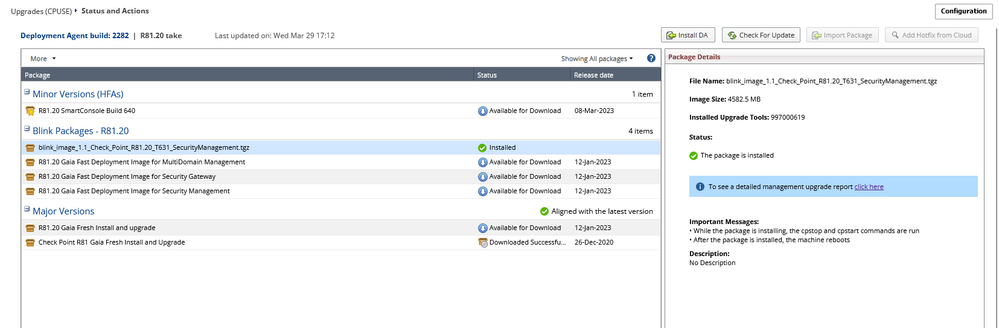

I have two gateways both upgraded to R81.20 and no JHF installed after the upgrade. Screenshot 2023-03-29 181015.png

This what I am picking on the GUI of the SMS after a week.

0 Kudos
the_rock
Legend
Legend

That cant be good mate, if you see that after a week??!! Thats not normal behavior at all. I had seen customers run into that maybe say 1 or 2 hours after upgrade, as it has so re-import whole database into new version, but a week, no way.

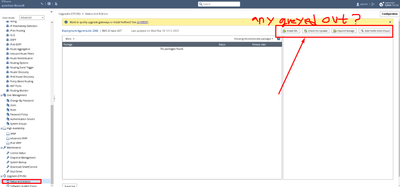

Can you see in web UI if below options are greyed out? If so, TAC once asked me to have customer follow below sk and that fixed it.

Also, have you tried rebooting server since?

Andy






CPUSE buttons grayed out or missing (checkpoint.com)





0 Kudos
Salom_Idhogela
Collaborator

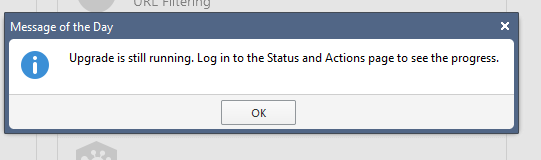

This is the behavior I am getting when I log into the URL,

Screenshot 2023-03-29 191526.png

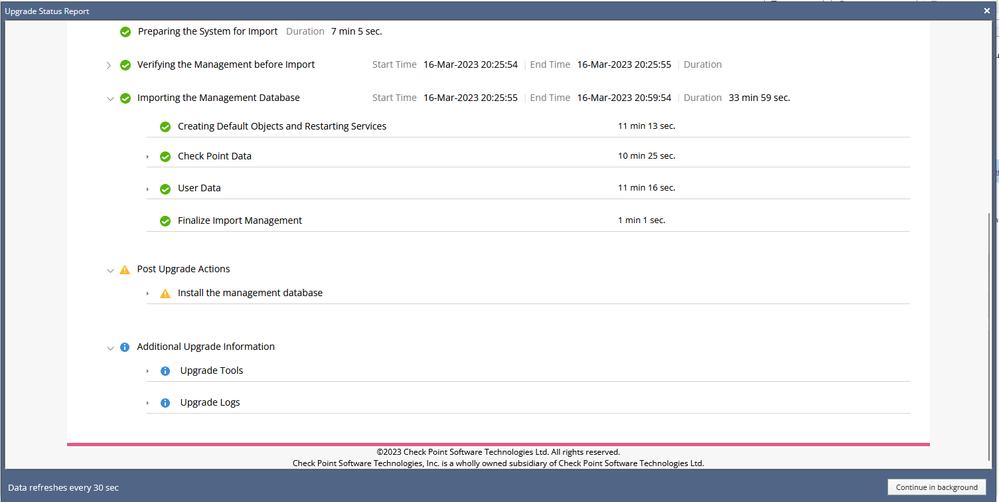

Then after clicking " Continue in the background" I get the below:

Screenshot 2023-03-29 191650.png

The "import package and Add hotfix from cloud" are grayed out.

I have rebooted the server, still the same behavior and just to add on that, this is not affecting my logging.

0 Kudos
the_rock
Legend
Legend

You may want to follow that sk then.

0 Kudos
Salom_Idhogela
Collaborator

They are not active not grayed out, however I am still getting the below after installing the database. Screenshot 2023-03-29 191526.png



0 Kudos
the_rock
Legend
Legend

I would get in touch with TAC to see if this can be fixed.

0 Kudos
Salom_Idhogela
Collaborator

Did you get any feedback from TAC? I have downgraded to R81 and this broke the cluster. I am unable to edit the object, I tried establishing the SIC via cli and policies are failing to catch.

I will appreciate your input.



Tx

0 Kudos
_Val_
Admin
Admin

It sees, you did not install the device correctly, @Salom_Idhogela

0 Kudos
Salom_Idhogela
Collaborator

Hi Val,

I am suspecting a license issue, kindly see below results after issuing cphastat syncstat:

cphaprob syncstat

Delta Sync Statistics

Sync status: OK

Drops:
Lost updates................................. 0
Lost bulk update events...................... 0
Oversized updates not sent................... 0

Sync at risk:
Sent reject notifications.................... 0
Received reject notifications................ 0

Sent messages:
Total generated sync messages................ 2535674
Sent retransmission requests................. 2
Sent retransmission updates.................. 8
Peak fragments per update.................... 1

Received messages:
Total received updates....................... 296056
Received retransmission requests............. 7

Sync Interface:
Name......................................... bond1.200
Link speed................................... 2000Mb/s
Rate......................................... 61950 [Bps]
Peak rate.................................... 61950 [Bps]
Link usage................................... 0%
Total........................................ 4633 [MB]

Queue sizes (num of updates):
Sending queue size........................... 512
Receiving queue size......................... 256
Fragments queue size......................... 50

Timers:
Delta Sync interval (ms)..................... 100

Reset on Sun Apr 2 12:44:49 2023 (triggered by fullsync).

Regards,

0 Kudos
_Val_
Admin
Admin

Your issue does not seem to be related to the topic discussed in this post. Please kindly open a separate post for this, explain what you did and what happened, and what you see.

It does not seem you have a licensing issue, but I would rather discuss it in a new post, as already mentioned.

0 Kudos
