CPview RX value is weird

Hi All,

I had bond interface named bond0 with its slave interface eth1-04 & eth1-05, and there is multiple vlan subinterface under bond0

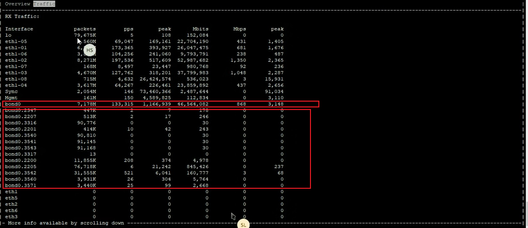

When I observe RX throughput in CPview, I saw an strange behaviour whereby bond0 has value around 800Mbps to 1000Mbps, but there is zero value for its all vlan subinterfaces.

cpview RX value labell.png



In TX, it appear normal whereby TX value of its bond0 subinterfaces has non-zero value.

cpview tx value label.png

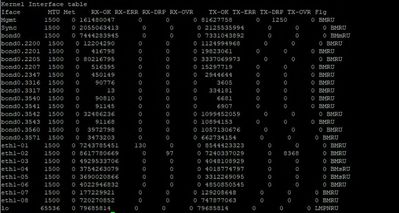

The output of netstat -ni shows there is RX packet in its bond0 subinterfaces.

netstat -ni.jpg

Is this firewall hitting any bug of cpview?
Firewall version is R81.20 with JHF take 92.

Thanks.



0 Kudos
5 Replies
Chris_Atkinson
MVP Gold CHKP MVP Gold CHKP
MVP Gold CHKP

Please confirm the appliance model and NIC type used?

When SecureXL works in the User Mode (UPPAK), traffic statistics on the Security Gateway do not contain packets and bytes for connections that are accelerated in hardware.

This applies to:

CPView > Network > Interfaces > Traffic.

Output of the "fwaccel stats -s" command.

Traffic statistics for the physical interface contains packets and bytes for connections that are accelerated in hardware for all VLAN interfaces configured on this physical interface.

Source: https://sc1.checkpoint.com/documents/Appliances/100G_Ports_AdminGuide/Content/Topics-100G-Card-AG/Kn...

CCSM R77/R80/ELITE
0 Kudos
weisoon
Explorer
Explorer

The model is Quantum Force 9300 Security Gateway and the interface bond0 is at NIC CPAC-8-1/10F-D that connected with SFP+ transceiver 10GBASE-T RJ45 (Copper).

0 Kudos
_Val_
Admin
Admin

I would open a TAC case to make sure

0 Kudos
the_rock
MVP Gold
MVP Gold

I would install recommended jumbo for starters, which is take 113. Now, just for comparison, was this value different beforehand or you just noticed it now?

Andy

0 Kudos
Lesley
MVP Gold
MVP Gold

Any hints in the HCP report regarding the bond setup?

hcp -r all

-------
Please press "Accept as Solution" if my post solved it 🙂
0 Kudos
