SMB appliances not logging NAT on networks behind VLANs

There is an inconsistency in logging traffic from Internal networks connected to the LAN# interfaces and LAN#.## VLANs of SMB appliances.

On my 1550 R80.20.05 (992001208), with two networks defined, 10.x.x.x on LAN1 and 192.x.x.x on LAN2.10, Global NAT for Internal Networks enabled:










NAT is actually working fine, but the logs are all over the place:




Also, in the Security Logs List view, we can see the Interfaces:

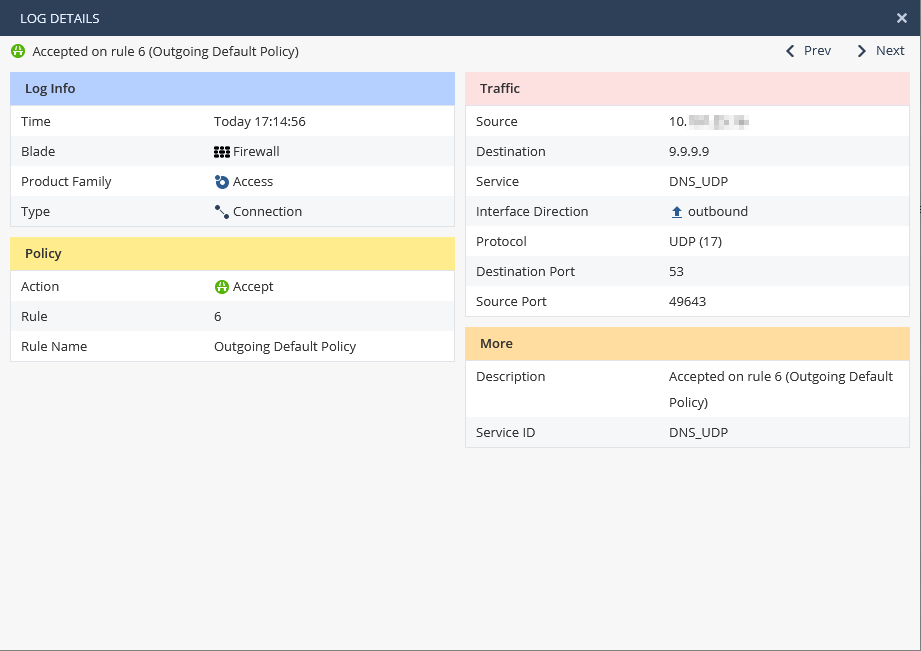

But in Log Details, this data is absent.

Additionally, there is no way that I see to define the Network as "Internal":


0 Kudos
2 Replies
PhoneBoy
Admin
Admin

Sounds like we might need a TAC case after trying R80.20.10

0 Kudos
Vladimir
Champion
Champion

If you are going to open an SR, please include the bit about missing interface data in the body of the events.

0 Kudos
