Web Application not working through SSL VPN

Hi all,

I have a web application that is not working through the SSL VPN. Internally, the web application works ok and also through a Cisco ASA SSL VPN, but when used through Checkpoint, the web application 'dashboard' doesn't display after successfully logging in.

The web server is hosted internally and has two portals, a user portal and management. Through the SSL VPN, the user portal works ok but not the management. I believe the website is using JavaScript.

The user portal and management portal are configured as separate Web Application objects with the URL pointing to the relevant portals.

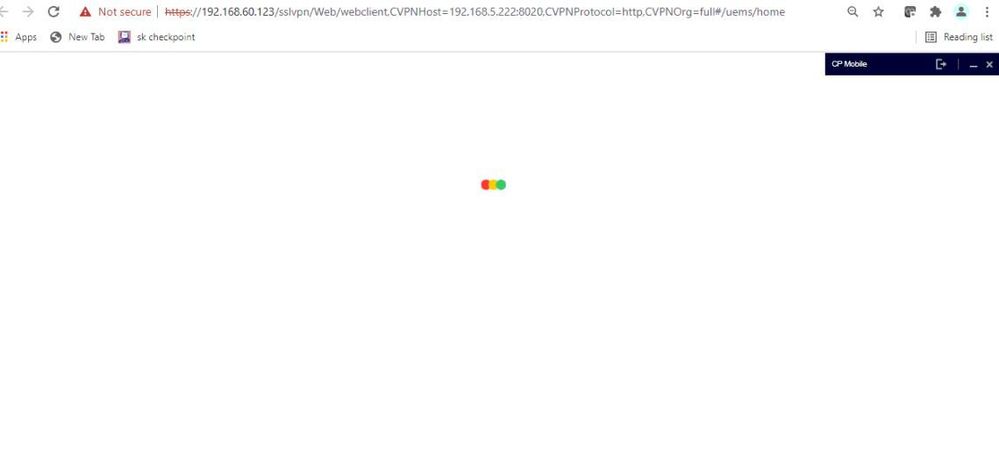

I have gone through the troubleshooting guide and put the SG into debug and trace mode and had a good look through the logs but can't see any reason why the 'home' page hangs once successfully logged in. I also have access to the web servers IIS logs and they all report 200 codes.

I have tried all the options in the protection level with caching in the web application object.

I can get the management portal to work if I configure the Web Application as a 'Domino Web Access (iNotes)' type, but this seems hit and miss.

Is there anything I could search for in the logs to help identify this issue? or any 'bypasses' configured for that site to rule out IPS etc

Many thanks

Rich



0 Kudos
4 Replies
_Val_
Admin
Admin

Are you using reverse proxy option? Try that. If no change, I would recommend a TAC case.

Is there anything special about those web applications?

0 Kudos
RichUK
Explorer

I believe we are not using the reverse proxy. We already run services through the portal, Citrix, Outlook Web Access, etc, would enabling the reverse proxy cause an issue with existing apps?

I've been doing some testing with the Web Application configured as iNotes vs not, and comparing logs. The following are from the browser's f12 tools and only shows two differences.

Working (iNotes)

<script src="https://gxxxxxx.xxxxxx.xk/sslvpn/Portal/CPPTfunctions.js"></script><script>var __CP_ENABLE_INOTES__ = true;</script>

vs

Not Working

<script src="https://gxxxxxx.xxxxxx.xk/sslvpn/Portal/CPPTfunctions.js"></script>

and also

Working (iNotes)

top.document.location.replace("ETADM001GF.SWITCHROLE?RID=" + pRoleID + "&RCHK=" + pResubChk + "&USESSION=" + pSessID);

vs

Not Working

top.__CP_PT_FUNC_replace__(document.location,"ETADM001GF.SWITCHROLE?RID=" + pRoleID + "&RCHK=" + pResubChk + "&USESSION=" + pSessID);

In the httpd.log:

Replacing (document.location.replace("ETADM001GF.SWITCHROLE?RID=" + pRoleID + "&RCHK=" + pResubChk + "&USESSION=" + pSessID)) with (__CP_PT_FUNC_replace__(document.location,"ETADM001GF.SWITCHROLE?RID=" + pRoleID + "&RCHK=" + pResubChk + "&USESSION=" + pSessID)) matched by pattern 45

What is pattern 45 and can the matching be stopped per site \ page? Or am I best just raising a TAC case?

(On a side issue, two Web Access objects configured differently, but with the same URL and published into MA only ever uses one of the objects no matter which one you select in the portal)

TIA

Rich



0 Kudos
Martin_Raska
Advisor

What translation method do you using in Web application object? If website is using any java script you should probably need host translation as a method link translation.

0 Kudos
RichUK
Explorer

I have tried Path Translation and URL Translation, with every variant of Browser Caching under Protection Level. Only setting the Web Application to a 'Domino Web Access (iNotes)' type makes the website work through MA.

0 Kudos
