SSL inspection bypass for Signal app

Hi,



Did someone manage to configure SSL Inspection bypass for Signal app on R80.30 based on custom application?

I have ssl enhanced inspection enabled, 1 rule with custom application (textsecure-service.whispersystems.org) with action bypass, and second rule to inspect everything. Signal traffic always hits second rule.



In logs I can find:

First SSL Inspection log: textsecure-service.whispersystems.org Detected

Second SSL Inpsection log: Matched Category: Uncategorized, HTTPS Inspected



So it looks that aplication (url) is detected properly but NGFW still want's to inspect it.





Best Regads,

Maciej





9 Replies
PhoneBoy
Admin
Admin

Properly redacted screenshots of the relevant log cards and rules used will be helpful.
0 Kudos
Danny
Champion Champion
Champion

Regarding to this Signal support article you will need to bypass wildcard URLs, https and UDP.

Allowing all UDP Traffic will make your firewall vulnerable to the UDP hole punching attack.

0 Kudos
HeikoAnkenbrand
Champion Champion
Champion

This works fine with other URL's on our FW's.

Is your https inspection enabled? I think so.


More read here
R80.x - Performance Tuning Tip - SNI vs. https inspection
or here:
HTTPS Inspection and website categorization improvements introduced in R80.30

If that doesn't help! Please some pictures of the https settings.







➜ CCSM Elite, CCME, CCTE ➜ www.checkpoint.tips
0 Kudos
Maciej_Maczka
Contributor

Hi,

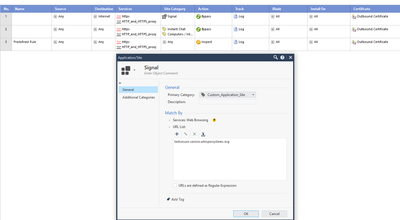

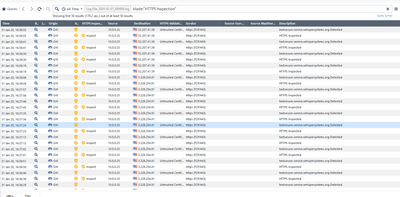

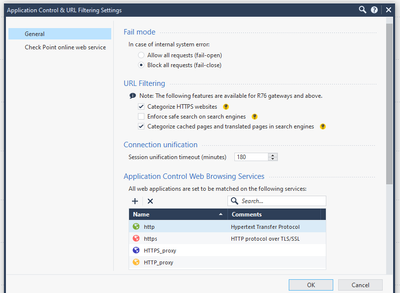

as requested adding config and logs screenshots.



Best Regards,

Maciej











          

0 Kudos
PatrikSkoglund
Contributor

I've this issue when I can't bypass by using domain names. I've to use IP:s. I guess it has to do with certificate pinning. But I might be wrong. But as soon as the traffic is intercepted the application fails. So get signals(in this case) ip-range and make a bypass rule for that. See if it works!
0 Kudos
Maciej_Maczka
Contributor

Hi,



There is certificate pinning. But I don't want to inspect. Bypass should work as I see certificate cn.
Yes, bypass works for IP addresses.


According to: sk104717 in R80.30 probe bypass was introduced - enabled by default.


Bypass mechanism was improved to better reflect policy and resolve the above limitations:

  • Stop the inspection of the first connection to bypassed sites.
  • Allow bypass of Non-Browser Applications connections.
  • Allow Bypass of connections to servers that require client certificate.
  • New probing mechanism eliminates the need to inspect the first connection to an IP address unless it is required by the policy.


Limitation.

HTTPS Inspection will not work for sites that require SNI (Server Name Indication) extension in the SSL "Client hello" packet. (Server Name Indication is an extension to the Transport Layer Security (TLS) computer networking protocol by which a client indicates which hostname it is attempting to connect to at the start of the handshaking process.)



There is SNI inside Client Hello, but I do not want to inpsect. I want to bypass so this limitation is irrelevant.


Best Regards

Maciej







0 Kudos
PhoneBoy
Admin
Admin

What if you set the category for your custom site to one you are bypassing?
Might also be worth a TAC case.
0 Kudos
abihsot__
Advisor

Hi there,

I have few ideas. First of all inspection rule any any is not recommended. Please try to define source and destination.

For some reason this url is not categorized as custom app but is matched as uncategorized. In custom app (signal) settings tick the box urls are defined as regular expressions and modify url to .*textsecure-service.whispersystems.org.*.



I see that server is using self-signed certificate. Try importing it to trusted CA list. I see you have drop traffic from untrusted servers unchecked, but it is quick try so worth checking.

* Server certificate:
* subject: C=US; ST=California; O=Open Whisper Systems; OU=Open Whisper Systems; CN=textsecure-service.whispersystems.org
* start date: Feb 15 17:38:17 2019 GMT
* expire date: Mar 12 18:20:20 2029 GMT
* issuer: C=US; ST=California; L=San Francisco; O=Open Whisper Systems; OU=Open Whisper Systems; CN=TextSecure
* SSL certificate verify result: self signed certificate in certificate chain (19), continuing anyway.

0 Kudos
User1234
Contributor

Any news or solutions to that?

0 Kudos
