PBR help please

[Nenad_Odic]

Dear friends i have never done PBR in Checkpoint so i need help suggestions for this concrete question.

I have read the SK's so i have some kind of understanding.

What baffles me is as you see in attach i have one internal network that should communicate with DC and it does.

Now we got second ISP ISP2 on the drawing,  i  want to send all internet traffic from that 1.1.1.1 LAN to that ISP2.

all other networks are going to internet to ISP1.

i have in static routes 0.0.0.0 next hop ISP1

and for the communication with DC i have x.x.x.x next hop some internal gw.

everything works .

Now i want to send\receive  internet traffic from 1.1.1.1 to ISP2 and not to disrupt communication with DC.

Hope i was clear and simple.

thanks in advance 🙂

[PhoneBoy]

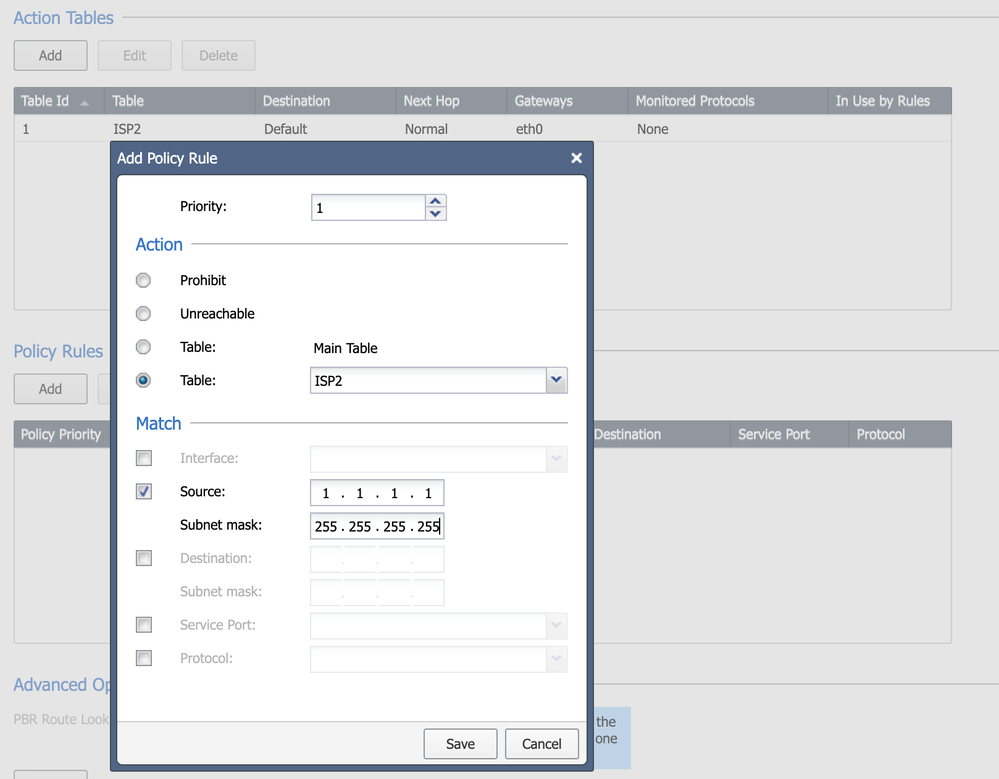

Create an Action Table specifying ISP2's default route.
Create a policy rule that references this table something like below.
Only the source(s) specified will be routed to ISP2.

[Nenad_Odic]

Thanks for help,

i have tried this kind of settings but than my communication from 1.1.1.1 to DC is broken .Internet works.

so do i have to have more than one rule or table regarding the dc communication?

Please help

thank you

[G_W_Albrecht]

I would suggest to contact CP TAC to get this resolved!

[PeterL]

It's been a while, but for as far as I can remember, PBR takes absolute precedence over all other routes.  So if you create a Policy Based Route that sends all traffic from 1.1.1.1 to ISP2, you should add another PBR for the traffic from 1.1.1.1 towards DC as well.

Make sure to take the Hide-NAT for your internet traffic into account as well, as this will most probably differ between ISP1 and ISP2.

Just my two cents...
