High dispatcher cpu

[Shawn_Fletcher]

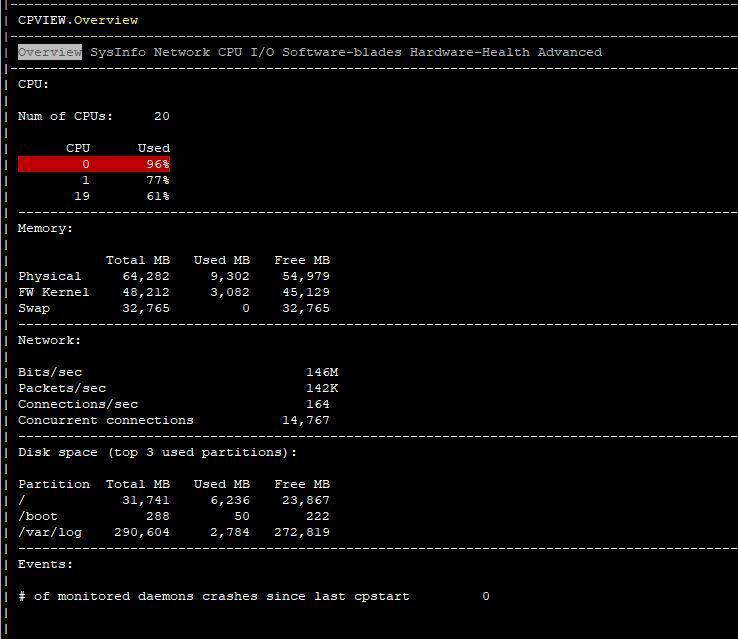

I've had ongoing issues since moving to R80.x with high dispatcher core usage. We have 21800 gateways . We've had multiple TAC cases, they had us add a 3rd dispatcher core and set the affinity for the cores manually, but i still consistently see the 10Gb interfaces spike the dispatcher CPU's in what should be low utilization situations for this model gw.  We are on R80.20 jumbo 87, gateways were freshly reinstalled direct on R80.20 after continuous crashes across both cluster members in the last few days (will not be upgrading cluster in place again)..priority queues are off per TAC.

any ideas would be appreciated... put some info below for context

CPU 0: eth1-02 eth1-04
CPU 1: eth3-02 eth1-01 eth1-03
CPU 2: eth3-01 eth3-03 eth3-04 Mgmt
CPU 3: fw_16
in.acapd fgd50 lpd cp_file_convertd rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 4: fw_15
in.acapd fgd50 lpd cp_file_convertd rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 5: fw_14
in.acapd fgd50 lpd cp_file_convertd rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 6: fw_13
in.acapd fgd50 lpd cp_file_convertd rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 7: fw_12
in.acapd fgd50 lpd cp_file_convertd rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 8: fw_11
in.acapd fgd50 lpd cp_file_convertd rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 9: fw_10
in.acapd fgd50 lpd cp_file_convertd rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 10: fw_9
in.acapd fgd50 lpd cp_file_convertd rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 11: fw_8
in.acapd fgd50 lpd cp_file_convertd rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 12: fw_7
in.acapd fgd50 lpd cp_file_convertd rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 13: fw_6
in.acapd fgd50 lpd cp_file_convertd rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 14: fw_5
in.acapd fgd50 lpd cp_file_convertd rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 15: fw_4
in.acapd fgd50 lpd cp_file_convertd rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 16: fw_3
in.acapd fgd50 lpd cp_file_convertd rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 17: fw_2
in.acapd fgd50 lpd cp_file_convertd rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 18: fw_1
in.acapd fgd50 lpd cp_file_convertd rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 19: fw_0
in.acapd fgd50 lpd cp_file_convertd rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
All: scanengine_b

sim affinity -l
Mgmt : 2
eth1-01 : 1
eth1-02 : 0
eth1-03 : 1
eth1-04 : 0
eth3-01 : 2
eth3-02 : 1
eth3-03 : 2
eth3-04 : 2

fwaccel stats -s
Accelerated conns/Total conns : 5632/11726 (48%)
Accelerated pkts/Total pkts : 87217254/91349341 (95%)
F2Fed pkts/Total pkts : 4132087/91349341 (4%)
F2V pkts/Total pkts : 349157/91349341 (0%)
CPASXL pkts/Total pkts : 78606120/91349341 (86%)
PSLXL pkts/Total pkts : 5653296/91349341 (6%)
CPAS inline pkts/Total pkts : 0/91349341 (0%)
PSL inline pkts/Total pkts : 0/91349341 (0%)
QOS inbound pkts/Total pkts : 89478397/91349341 (97%)
QOS outbound pkts/Total pkts : 90834289/91349341 (99%)
Corrected pkts/Total pkts : 0/91349341 (0%)

fw ctl multik stat
ID | Active | CPU | Connections | Peak
----------------------------------------------
0 | Yes | 19 | 927 | 1104
1 | Yes | 18 | 805 | 943
2 | Yes | 17 | 781 | 1606
3 | Yes | 16 | 814 | 1217
4 | Yes | 15 | 944 | 1722
5 | Yes | 14 | 895 | 1152
6 | Yes | 13 | 1102 | 1680
7 | Yes | 12 | 781 | 1674
8 | Yes | 11 | 1063 | 1063
9 | Yes | 10 | 741 | 1024
10 | Yes | 9 | 1002 | 1053
11 | Yes | 8 | 810 | 1016
12 | Yes | 7 | 799 | 964
13 | Yes | 6 | 831 | 1837
14 | Yes | 5 | 833 | 1017
15 | Yes | 4 | 841 | 1087
16 | Yes | 3 | 862 | 1329

free -m
total used free shared buffers cached
Mem: 64282 12574 51708 0 105 3124
-/+ buffers/cache: 9344 54938
Swap: 32765 0 32765

[HeikoAnkenbrand]

First step use multi queueing.

It is an acceleration feature that lets you assign more than one packet queue and CPU to an interface.

When most of the traffic is accelerated by the SecureXL, the CPU load from the CoreXL SND instances can be very high, while the CPU load from the CoreXL FW instances can be very low. This is an inefficient utilization of CPU capacity.

By default, the number of CPU cores allocated to CoreXL SND instances is limited by the number of network interfaces that handle the traffic. Because each interface has one traffic queue, only one CPU core can handle each traffic queue at a time. This means that each CoreXL SND instance can use only one CPU core at a time for each network interface.

Check Point Multi-Queue lets you configure more than one traffic queue for each network interface. For each interface, you can use more than one CPU core (that runs CoreXL SND) for traffic acceleration. This balances the load efficiently between the CPU cores that run the CoreXL SND instances and the CPU cores that run CoreXL FW instances.

More see here:

R80.x Performance Tuning Tip – Multi Queue

[HeikoAnkenbrand]

FYI:

R80.20 Performance Tuning Administration Guide

[Chris_Atkinson]

Please note the limitations (sk93036) in some scenarios if your system is using SAM cards...

-No dynamic dispatcher (sk105261)
-No multiQ (sk94267)
-No HW assisted acceleration (sk68701)

[Timothy_Hall]

Given the high amount of fully-accelerated traffic (which is handled on the dispatcher cores), you need more of them.  A lot more of them in your case, as most of your traffic is now being processed on the dispatchers as compared to R77.30 due to the changes in SecureXL.  High dispatcher CPU usage is not necessarily a problem, unless the RX-DRP rate displayed by netstat -ni is > 0.1% on one or more interfaces.

Assuming that is the case which is likely, here is what I would recommend:

0) SMT/Hyperthreading does not appear to be enabled, leave it off for now.

1) Remove the manual interface affinity, setting this is a very old recommendation that overcame some problems with automatic interface affinity in the initial minor releases of R77.XX.  No longer necessary on R77.30+ and is likely to just cause further problems; let automatic interface affinity do its thing.

2) Reduce number of kernel instances from 17 to 14 which will give a 6/14 split.  Assigning an odd number of SND/IRQ cores (dispatchers) is generally not a good idea anyway due to CPU fast cache thrashing.

3) As Heiko mentioned, now enable Multi-Queue on your busiest interfaces that were showing the highest percentages of RX-DRP.  Note that you can't enable Multi-Queue for more than 5 interfaces so choose carefully.

4) Reevaluate the need for the QoS blade, if you are just doing bandwidth limits and no guarantees you should use APCL/URLF Limit actions instead and disable the QoS blade for best performance.

[HeikoAnkenbrand]

Hi @Shawn_Fletcher,
Hi @Timothy_Hall,

As Timothy described in point three. I would enable MQ for all relevant 10GBit/s interfaces (max.5 interfaces).
The number of queues is limited by the number of CPU cores and the type of interface driver:

Network card driver	Speed	Maximal number of RX queues
igb	1 Gb	4
ixgbe	10 Gb	16
i40e	40 Gb	14
mlx5_core	40 Gb	10

[HeikoAnkenbrand]

Hi @Shawn_Fletcher

To point zero of @Timothy_Hall ˋs statement and I totally agree with him here.

21800 is already shipped with enabled SMT feature in the BIOS.

Requires enabling of SMT feature only in 'cpconfig' (refer to "Enable SMT" section).

Check Point always recommends turning on SMT on appliances. However, under certain conditions it can also be disadvantageous (in your case QoS). To test SMT performance, you can check it from my point of view only with and without SMT.

The following statement is also often discussed:

SMT can increase message rate for multi process applications by having more logical cores. This increases the latency of a single process due to lower frequency of a single logical core when hyper-threading is enabled. This means interrupt processing of the NICs will be slower, load will be higher and packet rate will decrease. I think that's why Check Point doesn't recommend SMT in pure firewall and VPN mode. From my point of view, it only accelerates software balades. Therefore I use it if necessary, if many blades are activated. I'd like to discuss that with Check Point.

Small example with basic viewing:

This presentation is very simplified and should illustrate the issues. If SMT channel 2 uses all core resources with I/O operations, channel 1 must wait for the core resources. This can reduce the performance with enabled SMT. The same effect can occur with multi-queue and enabled SMT. The problem can be fixed by adjusting the Check Point affinity or disable SMT. What we see here, many Intel architecture issues can affect SMT and therefore the firewall performance.

There are also some cases in which SMT should not be used:

• QoS is not supported (I saw you using QoS so I'd leave it off.)

• • Data Loss Prevention blade
  • Anti-Virus in Traditional Mode
  • Using Services with Resources in Firewall policy

    SMT is not recommended if these blades/features are enabled

• SMT is not recommended for environments that use Hide NAT extensively

More for SMT see here in my article:

R80.x Performance Tuning Tip – SMT (Hyper Threading)

Or sk93000:

SMT (HyperThreading) Feature Guide

[Timothy_Hall]

Great article Heiko, a few updates:

> SMT is not recommended for environments that use Hide NAT extensively

This is still stated all over the documentation, but is outdated now for R80.10+ and was related to the old static allocation of available source ports for each Hide NAT address to all the worker cores.   Doubling the number of Firewall Workers via SMT would cause half the usual available source ports for each Hide NAT address to be statically allocated to each Firewall Worker core, and they could run out easily causing NAT failures.   A new capability was added to dynamically allocate Hide NAT source ports in R77.30 via the fwx_nat_dynamic_port_allocation variable, but it was not enabled by default.  Starting in R80.10 gateway if there are 6 or more Firewall Worker Cores configured, by default the fwx_nat_dynamic_port_allocation variable will be automatically set to 1, otherwise it will still be 0.

As you observed having SMT/Hyperthreading enabled can actually hurt performance if only the Firewall and VPN blades are enabled since it is likely a large percentage of traffic will be fully accelerated by SecureXL in the SXL path.  From my TechTalk (slightly updated for this thread):

• Traffic that is being processed in the Medium Path (PXL) or Firewall Path (F2F) on the Firewall Worker cores tends to benefit most from SMT being enabled, since intensive processing in these paths tends to block often while waiting for an I/O event to occur.  When a block occurs in a thread running on a physical core, another thread of execution that is ready can jump on that core while the original thread is still waiting.
• However if more than about 60% of a gateway’s traffic is fully accelerated by SecureXL in the SXL path (not common), SMT tends to hurt overall performance, as operations handled by a SND/IRQ core are completed quickly and do not tend to block often waiting for external events; as such two SND/IRQ instances in two separate threads tend to fight each other for the same physical core under heavy load.

[Shawn_Fletcher]

Hi @Timothy_Hall & @HeikoAnkenbrand

Want to thank you both for the really detailed info. I've been reading up and think MQ could be a good option.

Just to confirm

-I do not have a SAM card

-Unfortunately the QoS blade is actively used as we have some voip traffic we explicitly prioritize so at this point SMT will have to stay out of the available options. I think i will hold off on testing SMT until after MQ to ideally not have to remove the QoS.

-The majority of the traffic comes across 4x10gb interfaces so i think it makes sense to activate those 4 for MQ. It looks like this is a simple command then reboot to activate and is not disruptive (if in an HA cluster) and do one unit at a time

-first i will set the sim affinity back with sim affinity -a (this was a TAC suggestion FYI, to set affinity manually and add 3rd dispatcher core.

- I need to further increase my SND cores from 3/17 to 6/14 with cpconfig
(if memory serves this is a brief outage since the cluster wont sync with mismatching core setups?)

One note, netstat -ni is not currently showing RX-DRP rate > 0.1% (although the gateway was recently reinstalled). The high SND CPU has come up on a couple TAC cases regarding stability so i've been paying attention to it for that reason

Thanks very much for taking the time to assist.

[HeikoAnkenbrand]

Hi @Timothy_Hall,

CUT>>>

> SMT is not recommended for environments that use Hide NAT extensively

This is still stated all over the documentation, but is outdated now for R80.10+ and was related to the old static allocation of available source ports for each Hide NAT address to all the worker cores...

<<<CUT

Thanks @Timothy_Hall for this info. That wasn't 100% known to me either. I'll add that to my article.

[Shawn_Fletcher]

Just an update on this, 1 day into the revised SND setup with 6/14 and with MQ on the 10gb interfaces the CPU load was much better on the SND cores. It still significantly spiked during some periods where packets/sec  got up to near 400k from typical 50k-100k during production hours. Any tips to help identify what those bursts are would be great.

I did notice today with netstat -ni that one of my 1gb interfaces now has RX-DRP count.  I know it was max 5 of  10gb interfaces for MQ , but am i safe to add additional 1gb interfaces?

fw ctl affinity -l -r
CPU 0: Mgmt
CPU 1: eth3-01
CPU 2: eth3-02
CPU 3: eth3-03
CPU 4: eth3-04
CPU 5:
CPU 6: fw_13
in.acapd fgd50 lpd cp_file_convertd scanengine_b rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 7: fw_12
in.acapd fgd50 lpd cp_file_convertd scanengine_b rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 8: fw_11
in.acapd fgd50 lpd cp_file_convertd scanengine_b rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 9: fw_10
in.acapd fgd50 lpd cp_file_convertd scanengine_b rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 10: fw_9
in.acapd fgd50 lpd cp_file_convertd scanengine_b rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 11: fw_8
in.acapd fgd50 lpd cp_file_convertd scanengine_b rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 12: fw_7
in.acapd fgd50 lpd cp_file_convertd scanengine_b rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 13: fw_6
in.acapd fgd50 lpd cp_file_convertd scanengine_b rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 14: fw_5
in.acapd fgd50 lpd cp_file_convertd scanengine_b rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 15: fw_4
in.acapd fgd50 lpd cp_file_convertd scanengine_b rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 16: fw_3
in.acapd fgd50 lpd cp_file_convertd scanengine_b rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 17: fw_2
in.acapd fgd50 lpd cp_file_convertd scanengine_b rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 18: fw_1
in.acapd fgd50 lpd cp_file_convertd scanengine_b rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
CPU 19: fw_0
in.acapd fgd50 lpd cp_file_convertd scanengine_b rtmd usrchkd rad in.geod mpdaemon in.msd wsdnsd pdpd pepd in.asessiond vpnd fwd cpd cprid
All:
Interface eth1-01: has multi queue enabled
Interface eth1-02: has multi queue enabled
Interface eth1-03: has multi queue enabled
Interface eth1-04: has multi queue enabled

fwaccel stats -s
Accelerated conns/Total conns : 2271/14754 (15%)
Accelerated pkts/Total pkts : 5159177017/5770079738 (89%)
F2Fed pkts/Total pkts : 610902721/5770079738 (10%)
F2V pkts/Total pkts : 46842804/5770079738 (0%)
CPASXL pkts/Total pkts : 4386384160/5770079738 (76%)
PSLXL pkts/Total pkts : 690434477/5770079738 (11%)
CPAS inline pkts/Total pkts : 0/5770079738 (0%)
PSL inline pkts/Total pkts : 0/5770079738 (0%)
QOS inbound pkts/Total pkts : 5554439911/5770079738 (96%)
QOS outbound pkts/Total pkts : 5800977548/5770079738 (100%)
Corrected pkts/Total pkts : 0/5770079738 (0%)

[Stefano_Bucci]

how did you serolve this?
