mac_replenisher how to add Missing MAC info into Smart Provisioning R80.20 and above

[Jan_Irani]

Hi,

for sure all of you have seen that since those old UTM devices check Point is not Reporting the MAC Address of Gateways which are in "Provisioning" Mode. Please find below a shell script which you can start over cron-job to replenish missing information.

bold marked lines have to be modified to match your environment.

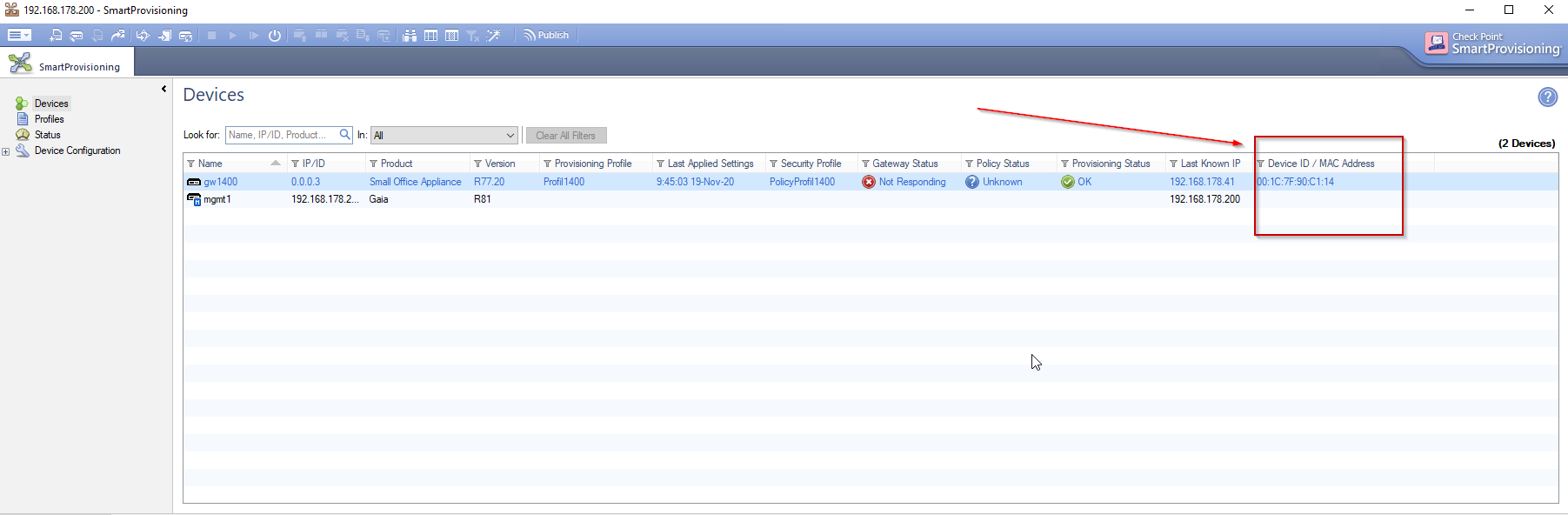

Devices Overview

* in the second Line you have to put your Management Server Version

* in the third line management server name and credentials

* in line 16 use -local or -s <server> to specify Management Server IP or name

try the LSMcli command once before you use the whole script to see if the query result match your expectation.

>>>>>>>>>>>>> snipp

#!/bin/bash -f

source $CPDIR/tmp/.CPprofile.sh

LSMcli <mgmt-server> admin <admin-password> Show -F=nit | grep -i -P "(.*)\s(\d)+\.(\d)+\.(\d)+\.(\d+)\s.*(ROBO)" > DevList.txt

while IFS=$'\t' read -r DevName IPAddr DevProfile

do

   cprid_util -server $IPAddr -verbose rexec -rcmd /bin/clish -c "show diag" > DevDiagOutput.txt

   myArray=($(cat DevDiagOutput.txt | grep -Pi "HW MAC Address:\s([0-9a-f]{2}[:-]){5}([0-9a-f]{2})"))

   if [[ "x${myArray[3]}" != "x" ]]

   then

      echo "modify robo_gateways $DevName device_id ${myArray[3]}" >> dbeditScript.txt

   fi

   myArray=""

done < /home/admin/DevList.txt

echo "quit -update_all" >> dbeditScript.txt

dbedit -local -f dbeditScript.txt

DevList.txt

DevDiagOutput.txt

dbeditScript.txt

>>>>>>>>>>>>>>> snapp
