Get rid of Secondary Connect - use VPN routing

[Khay]

Hello,

For now vpn client are using basic authentication (AD login/password) and I want to enforce a new authentication method for vpn client (azure SAML),

The issue is every client usually open a secondary tunnel to our main site, it's totaly transparent for the user.

With SAML I will have a prompt when the second tunnel open, so I want to get ride of this functionnality, the traffic going though this secondary tunnel is legit but I want to use vpn routing instead.

To achieve this, should I disable secondary connect on all gateway with "$FWDIR/conf/trac_client_1.ttm" file ?
Or can I only modify Encryption domain for vpn client to include the destination subnet of the remote gateway ?

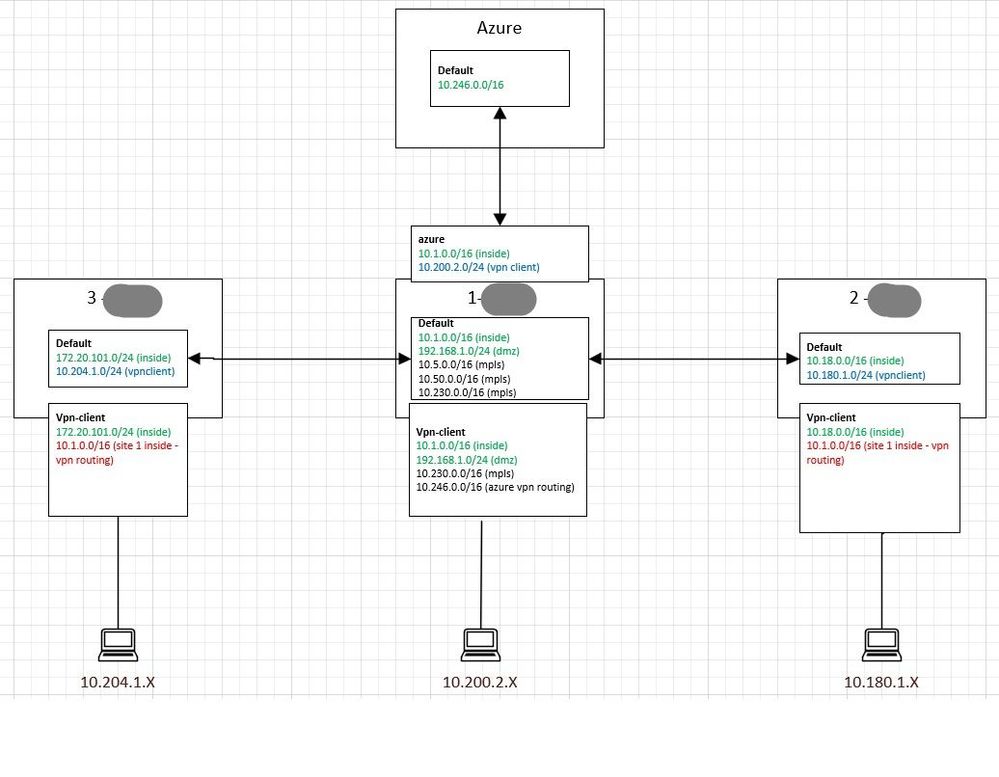

here is a picture of a part of my infra (default: default encryption domain, azure, vpn-client are specific encryption domain)

site 1 is the center gateway of a star community where site 2 and 3 are satellite

clients on site 2 and 3 usually open a secondary tunnel to site 1

If I add the subnet in red and blue in encryption domain, should it be enough ? I did some test and I still see a secondary tunnel, if I check routes on client I see subnets from all my gateway is it the issue ?

All Gateway version : R81.20 Take 99

Thanks for your help

[PhoneBoy · Accepted solution]

This is expected behavior with SAML as each gateway/cluster is a unique service provider.
I believe it's possible to use Infinity Identity with Secondary Connect, though I'm sure @Royi_Priov will correct me if I'm wrong.

Without Infinity Identity and SAML, yes, you have to disable Secondary Connect if you don't want to be prompted for authentication again.
If you want a specific gateway to allow access to other subnets behind other gateways via VPN routing, you need to add those subnets to the RemoteAccess encryption domain on the relevant gateway.
