How To's - Deploy Check Point Identity Awareness

Hi there, in this post we’re going to deploy Check Point Identity Awareness.

First of all, we’re going to integrate our Active Directory (LDAP/AD) with Check Point Security  Solution (CP).

This lab assumes you already have an AD deployed in the same network as the CMA and the Gateway.

We’ll start by creating a user with admin privilege in AD for CP.



Once the user is created, let’s add an object in SmartConsole (SC) representing the AD.

On side bar click New > Host

4.png  5.png

Now let’s create an LDAP Account Unit that represents branches of user information on one or more AD servers.

On side bar click New > More > Server > LDAP Account Unit…


In General tab, fill the required information:

Name: ANYNAME_TO_REFERENCE_AD

Profile: Microsoft_AD

Domain: AD name / Domain name

Account Unit usage: select CRL Retrieval, User Management and Active Directory Query


In Servers tab, choose Add…

To get the Login DN, run dsquery user -name cpadmin on AD (Windows Server 2019) cli prompt. It will give a similar output as below:

"CN=cpadmin,OU=ITDepartment,OU=Checkpoint,DC=bulltech,DC=com"


In Objects Management tab, select the server to connect and choose the option Fetch branches.


Finally select the following the Authentication schemes:


Press ok and publish the changes.

At this point we should be able to query the AD for users identities.

Now let’s enable identity awareness by selecting this option on gateway properties.


Select the options AD Query and Browser-Based Authentication


Now press connect.


Next let’s install the policy to update the changes, so we can test this new feature.

Let’s create a simple rule policy like the one below with one additional layer:


In Access Control pane, right click on it, and edit the policy.

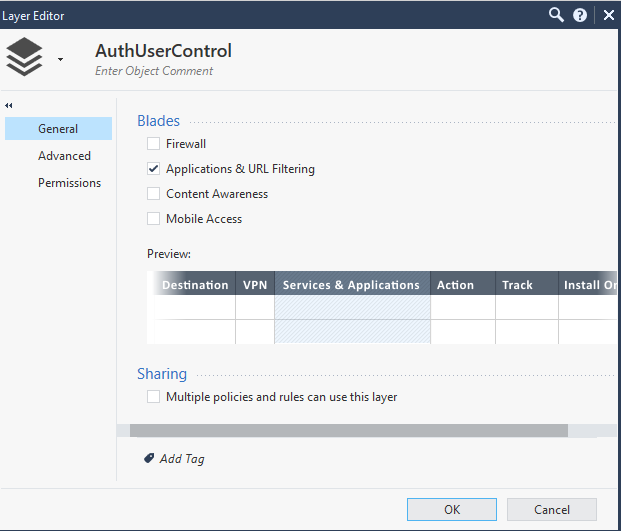

In Policy Types > Access Control, click on plus signal and add a new layer


Disable the Firewall option and enable Applications & URL Filtering


Press ok and create the following rules

To specify the user or group we want filter, we’ll create an access role. For example, let’s allow only one user from marketing department.

In source field, click on plus sign and click on it.

In the new window, click on star sign, and choose Access Role…


Give it a name, and query for a user you would to give access. In this case I chose Martin by accessing the Users tab > Specific users/groups.


Install the policy and test the access.


We can also confirm, that the policy is working has expected by looking at the logs.


We see that the user martin, from marketing department was allowed to access the internet, according to our rules:


As for Florence and Mark, both are being blocked.




Hope you enjoyed this post, leave your comments below and I'll see you on the next post.

References:

https://sc1.checkpoint.com/documents/R80.10/WebAdminGuides/EN/CP_R80.10_IdentityAwareness_AdminGuide/html_frameset.htm?topic=documents/R80.10/WebAdminGuides/EN/CP_R80.10_IdentityAwareness_AdminGuide/62050



https://sc1.checkpoint.com/documents/R80.30/WebAdminGuides/EN/CP_R80.30_IdentityAwareness_AdminGuide/html_frameset.htm?topic=documents/R80.30/WebAdminGuides/EN/CP_R80.30_IdentityAwareness_AdminGuide/62050

1 Reply
Magnus-Holmberg
Advisor

I would advice everyone to use the identity collector when it comes to identity’s.

it gives a lot more flexibility with filters and scalability.

regards
magnus
