Appliance High cpu usage

[ShadowNif]

Hey,

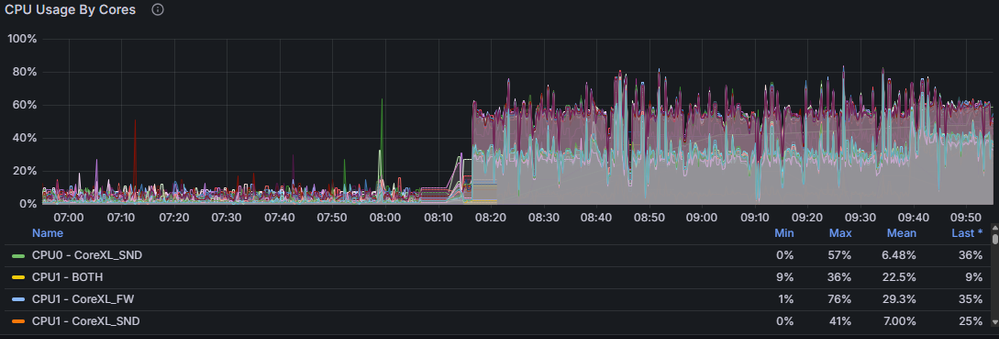

I have noticed something on one of my Maestro Appliance, the CPU usage in the VS0 is always so high. I can see the spikes in Grafana too. Although, the Appliances are not overloaded or anything, actually the other way around. I do not have a lot of traffic and the Appliance 9800  with 40 CPUs. And the same thing I see on the STANDBY appliance. In VS0 I have around 40% usage with some K Throughput Which does not make any sense.

VER.  R81.20 Take 89

Is this a known issue or been solved with new Takes ?

[Lesley · Accepted solution]

It could be that the VS0 CPU is shared by other VS systems. Please share output:

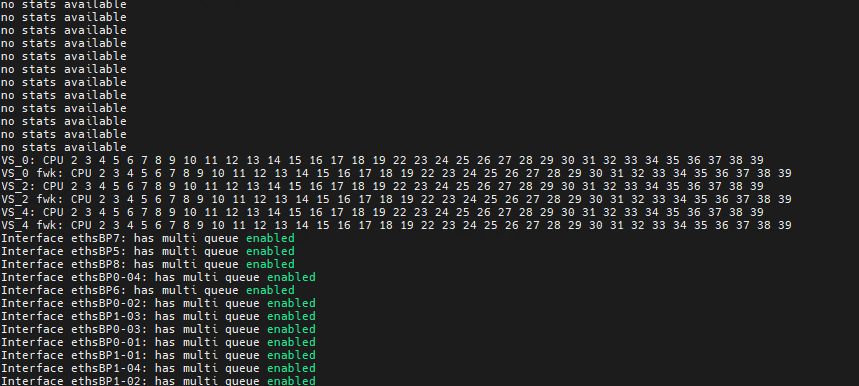

fw ctl affinity -l

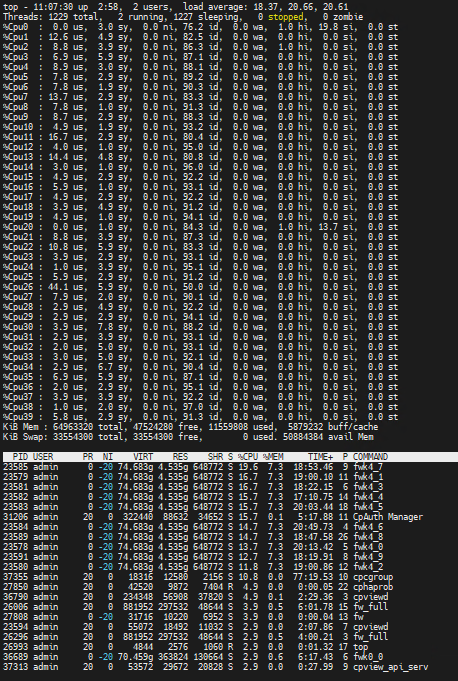

top, ps auxw and top -H could give more hints.

Regarding open bugs, there are a few , also for Maestro start to check the 2 below:

https://support.checkpoint.com/results/sk/sk183251

https://support.checkpoint.com/results/sk/sk183490

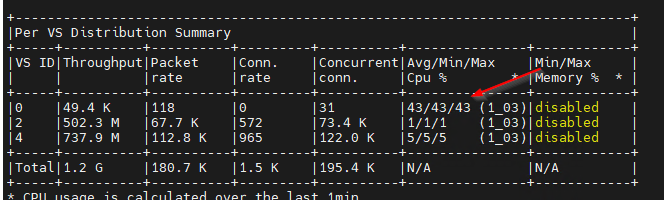

Also check with CPVIEW if the SND's are not very high loaded, this is also open bug.

[ShadowNif]

it's always CoreXL_FW

[Lesley]

ps auxw output shows the bug that was posted above. I would upgrade. If you want to confirm open TAC ticket.

[Lesley]

this one:

admin 825 4.3 0.0 8180 5684 ? S< 11:06 0:00 /opt/CPsuite-R81.20/fw1/Python/bin/python2.7_deprecated /opt/CPsuite-R81.20/fw1/bin/mq_mng -u

And many more in output
