edit policies

[junior_kakou]

Hello everyone;

I need your help to solve a problem.

After an error message from smartconsol R81.10, I could no longer display the policies
and I had to reset the FW. i reset it and installed R81.20

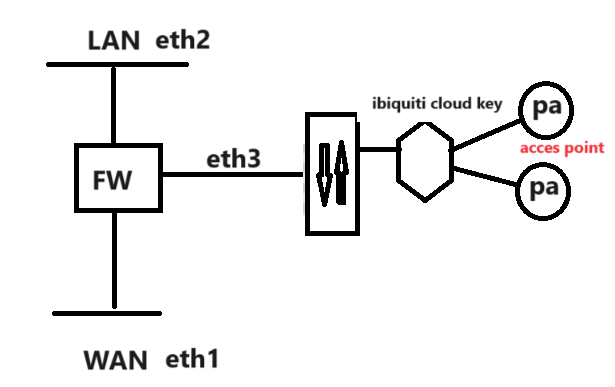

this is a diagram of the Network.

The dhcp server is activated on eth3 on which a cloudkey with access points is connected
(192.168.2.0).

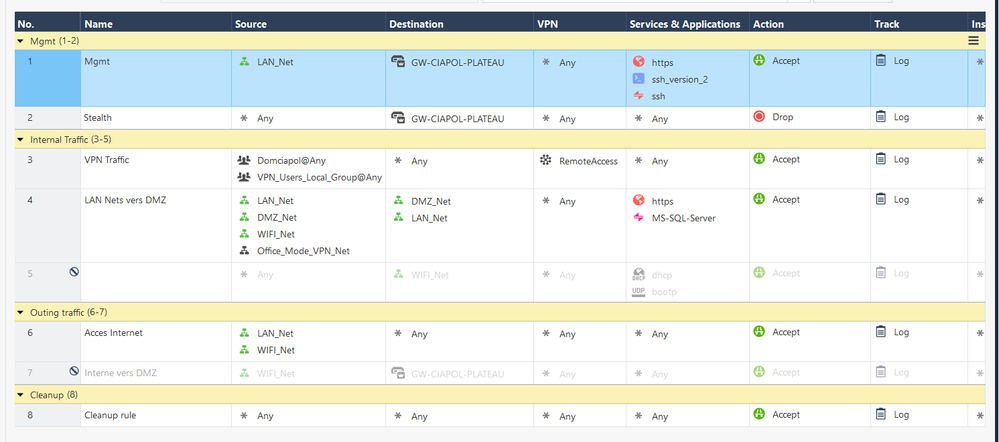

The problem is that rule 5 doesn't allow access points to distribute |p addresses to devices.

When the cleanup rule is "accept" enabled, access points distribute IP addresses, but not when it's "drop"
when in normal "drop" mode.

I'd like to know how to write the rules so that Pa can distribute addresses to the lan (192.168.2.0) eth3.

thank you

Translated with DeepL

[the_rock]

When rule 5 was enabled, did you ever do zdebug to see why its dropped?

Andy

[junior_kakou]

this is the resulte after zdebug command
[Expert@GW-xxxx:0]# zdebug
bash: zdebug: command not found
[Expert@GW-xxxx:0]#

[the_rock]

Thats not how you do it. Say if IP you checking for is 1.2.3.4, you run

fw ctl zdebug + drop | grep 1.2.3.4

Andy

[junior_kakou]

[the_rock]

I would do firewall captures to make sure why connection is not completing...ie tcpdump and fw monitor.

Andy

[Zolocofxp]

Check your routing tables... It appears traffic from source 192.168.2.141 is not going through the firewall, only return traffic.

[the_rock]

Very good point actually.
