CCP packets sent to network address instead of broadcast address

Hi,

my GW cluster is R80.10. I captured the following CCP traffic on one interface:

Network: 192.168.60.64/27

VIP: 192.168.60.65/27

Member1:  192.168.60.66/27

Member2:  192.168.60.67/27



Packets captured:

Source: 0.0.0.0 -> Destination: 192.168.60.64 - Port UDP8116



From all SKs and infos I read about CCP the packets should go to the broadcast IP 192.168.60.95, right ?



Regards Tom



2 Replies
HeikoAnkenbrand
Champion
Champion

Hi @TomShanti

That's all correct.

With Broadcast CCP the network IP address is always used as destination. In your case 192.168.60.64. It's not layer 3 broadcast, it's layer 2  broadcast.

Here only the broadcast MAC ff:ff:ff:ff:ff:ff is used.

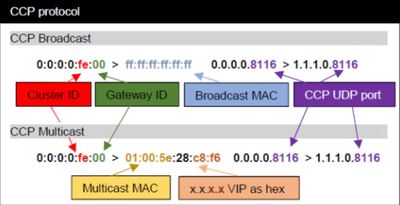

Here I describe the important broadcast and multicast CCP parameters in a picture. More read here.

R80.x - cheat sheet - ClusterXL



0 Kudos
Reply
TomShanti
Collaborator

Hi Heiko,

still not sure if this is correct 🙂

https://supportcenter.checkpoint.com/supportcenter/portal?eventSubmit_doGoviewsolutiondetails=&solut...



Cause

Check Point CCP packets are not able to pass through the switch when CCP is working in multicast mode (by default, the destination IP address of CCP packets is broadcast IP address for the relevant subnet).



All my readings say "broadcast IP" not "network IP".



Regards

Tom
