memory is high

[wasan_so]

Management  CP memory is high

 My CP6700 is 16G  memory

[_Val_]

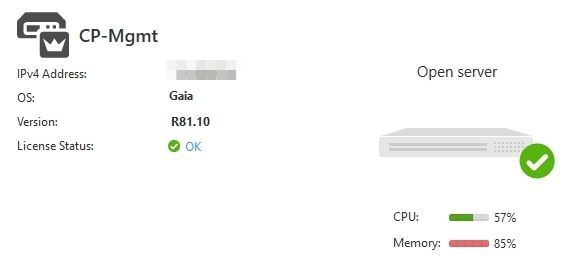

The screenshot is showing your open server-based management. 6700 is a security GW appliance. How is it relevant here?

[the_rock]

Can you run cpview and see what memory shows there? Also, top command would be useful.

Andy

[wasan_so]

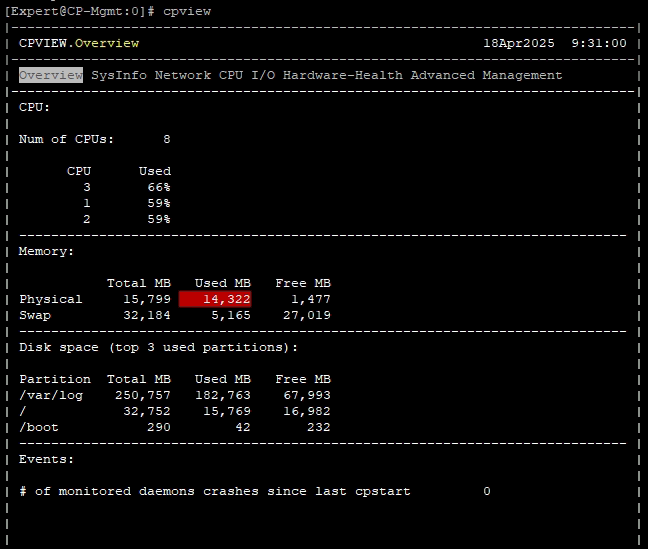

I  the cpview command to check

[the_rock]

You are definitely running out of memory based on that. Can you please run top and send the output?

Andy

[Timothy_Hall]

Output of free -m please.

[wasan_so]

[wasan_so]

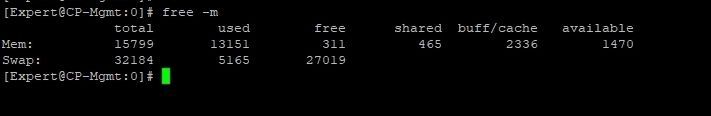

[Expert@CP-Mgmt:0]# free -m
total used free shared buff/cache available
Mem: 15799 13151 311 465 2336 1470
Swap: 32184 5165 27019
[Expert@CP-Mgmt:0]#

[Timothy_Hall]

Yeah 5GB into swap space (32%) on a 16GB box is not good but may be normal depending on what blades are enabled.  Please provide output of enabled_blades.  If the "available" number continues to fall to a critical level due to a possible memory leak the firewall will begin having problems.

[the_rock]

Just so its in little bit more readable format, though I can sort of tell, can you send free -g? Seems there is only about 1.5 GB memory free...btw, does reboot free up any memory at all?

Andy

[the_rock]

Also, ps -auxw would help too, so we can see whats consuming memory.

Andy

[the_rock]

Hey @wasan_so , were you able to make any progress with this?

Andy
