Configure WAN interface outside the cluster.

[wislley]

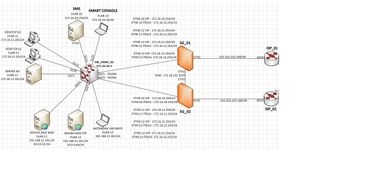

Hello. I am studying in a laboratory environment and I have a question. In the topology of the image I have a clusterXL already configured. My LAN interfaces are OK working with VIPs. My question is in the WAN connection (eth3) with my 2 ISPs. Is it possible to keep the eth3 interface connected with ISPs outside the cluster? In SMAR CONSOLE in the cluster properties I can't add the eth3 interface to stay out of the cluster.

[PhoneBoy]

This would be an unmonitored interface, which is possible.
See this thread: https://community.checkpoint.com/t5/Enterprise-Appliances-and-Gaia/ClusterXL-none-monitored-interfac...

[_Val_ · Accepted solution]

Of course you can, just mark it as private

[wislley]

Hi Val. Thank you very much. I even selected the PRIVATE option, but I thought I had to enter the IP addresses on the 2 secure gateways. Thank you, as it is already working here.
