Luis_Miguel_Mig
Advisor

supported open servers - hp proliant

This is the list of compatible open servers  https://www.checkpoint.com/support-services/hcl/.
However there is not information about hardware health monitoring.
I have come across servers I can monitor raid, fans, etc and servers that are certified to run gaia but then hardware health/sensors monitoring is not supported.

It would be good if this information was included in the list of compatible open servers.

To be more specific I guess that nobody has managed to monitor hp proliant hardware agent or agentless ?

0 Kudos
6 Replies
HeikoAnkenbrand
Champion Champion
Champion

Hi @Luis_Miguel_Mig,

You can query all sensor data of the server via SNMP.

This should be possible for all values that you also see with "ipmitool":

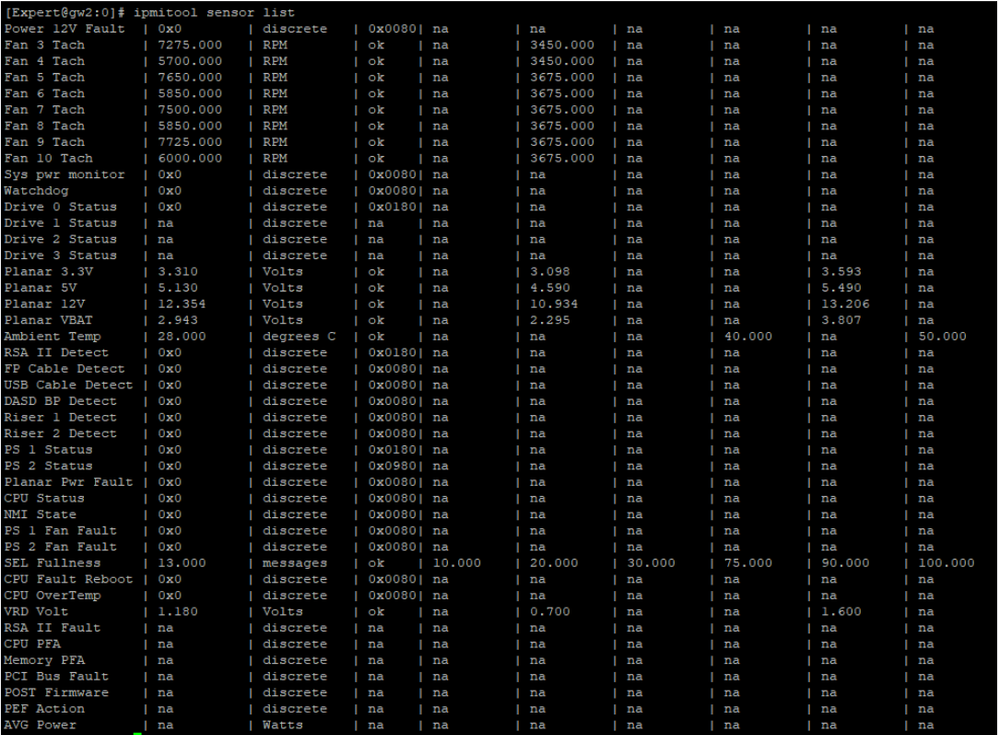

# ipmitool sensor list


➜ CCSM Elite, CCME, CCTE ➜ www.checkpoint.tips
Luis_Miguel_Mig
Advisor

Nothing in the case of an HP DL360/380 gen8/9

ipmitool sensor list
Could not open device at /dev/ipmi0 or /dev/ipmi/0 or /dev/ipmidev/0: No such file or directory
Get Device ID command failed
Unable to open SDR for reading


[Expert@fw]# raidconfig status
-- Controller Information --
ID MODEL


-- Arrays information --
ID Type Size State


-- Disks information --
ID Model Size Status

0 Kudos
Tobias_Moritz
Advisor

For hardware monitoring of HPE servers, I would recommend using ILO for that.

There are plenty of scripts available online which you can use in your monitoring software of choice to query hardware health from HPE ILO.

Doing that you are independend of operating system running on that server and therefor you do not need support within Gaia.

0 Kudos
Luis_Miguel_Mig
Advisor

Thanks Tobias, do you mean scripts that connect to the ILO web GUI  and extract the health status via web?

SNMP is not supported as far I understand as it requires  agent or agentless solutions

0 Kudos
Tobias_Moritz
Advisor

No. HPE ILO has a REST interface. No need to scrap data from the web interface interactive use.

An example for a script which queries this REST interface is this one:

https://exchange.icinga.com/algbaer/check_ilo2_health

0 Kudos
Luis_Miguel_Mig
Advisor

Thanks Tobias.
Testing the python library https://hewlettpackard.github.io/python-ilorest-library/

I had some issues to compile the Nagios/Icinga Library

0 Kudos
