add vlan interface via set-simple-cluster not working

[Christoph_Spatt]

Hi,

i need to add a vlan interface to a simple cluster (ClusterXL). I am using the REST API Interface of the Management server. The task is created successfully (HTTP 200 with task-id in return). However the task fails with the following message: "line 536:21, no viable alternative at input ':'"

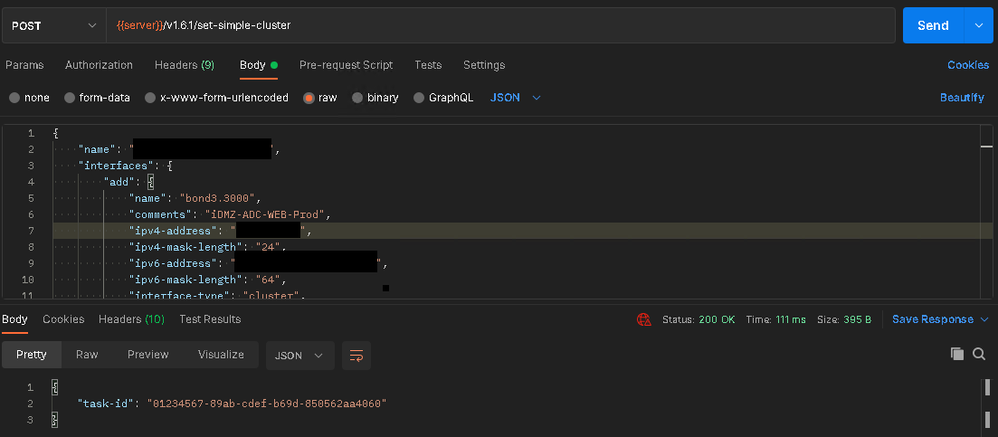

I am using R80.40 (API version 1.6.1). For the API calls I am using ansible or postman.

Any idea how to troubleshoot this?

Here is the json from the api call:

{
    "name": "zzz",
    "interfaces": {
        "add": {
            "name": "bond3.3000",
            "comments": "iDMZ-ADC-WEB-Prod",
            "ipv4-address": "zzz",
            "ipv4-mask-length": "24",
            "ipv6-address": "zzz",
            "ipv6-mask-length": "64",
            "interface-type": "cluster",
            "topology": "internal",
            "topology-settings": {
                "interface-leads-to-dmz": "true",
                "ip-address-behind-this-interface": "network defined by the interface ip and net mask"
            },
            "anti-spoofing": "true",
            "security-zone": "true",
            "security-zone-settings": {
                "auto-calculated": "true"
            }
        }
    },
    "members": {
        "update": [
            {
                "name": "zzz",
                "interfaces": {
                    "name": "bond3.3000",
                    "ipv4-address": "zzz",
                    "ipv4-mask-length": "24",
                    "ipv6-address": "zzz",
                    "ipv6-mask-length": "64"
                }
            },
            {
                "name": "zzz",
                "interfaces": {
                    "name": "bond3.3000",
                    "ipv4-address": "zzz",
                    "ipv4-mask-length": "24",
                    "ipv6-address": "zzz",
                    "ipv6-mask-length": "64"
                }
            }
        ]
    }
}

[PhoneBoy]

Unfortunately, if you're adding an interface to an existing gateway object, you have to (re)add ALL the interfaces, not just the single one.
This was discussed previously in the community, though I can't find the precise thread.

[Christoph_Spatt]

The API call works on a cluster that just exists in SmartDashboard (no real devices, no SIC, etc).

I checked cpm.elg and found some java stackt races and this message:

25/11/21 13:25:47,593 ERROR objects.network.GatewayNetworkOverviewFactoryImpl [pool-7-thread-1]: Missing interface for member with uid [bdc0e2cc-739d-4ca8-a4da-2e4662812630] in network [bond3
.3000] of type [CLUSTER].
25/11/21 13:25:47,594 ERROR objects.network.GatewayNetworkOverviewFactoryImpl [pool-7-thread-1]: Missing interface for member with uid [304248d6-6163-4165-894f-f7f60eb98534] in network [bond3
.3000] of type [CLUSTER].

[JuPo]

cpm.elg contains API failed logs. Try to check there for more details.
