Creating a simple access rule via API

For this document we will assume that only the protocol objects and basic policy have been created.



Current policy




Current layers in the default policy








  1. Create source and destination objects.

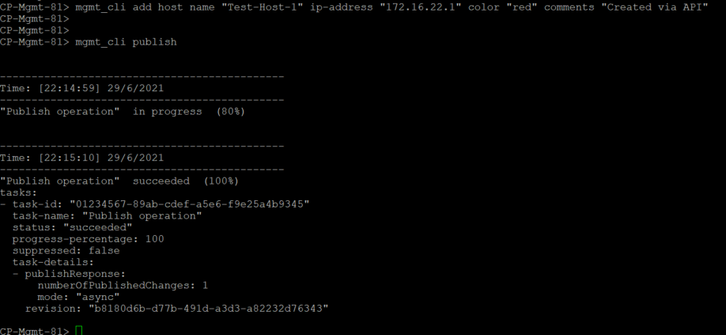

    1. Creating a destination host object

Using the API call add host we have 1 required filed, Name, and require and ip address v4 or v6 via ip-address, ipv4-address or ipv6-address.

Optional fields include



Tags = collection of tag identifiers

Host-servers = servers configuration

Nat-setting

Interfaces

Groups

Color

Comments



Don’t forget to publish

          Mgmt_cli publish



















  1. Creating a source network object

Using the API call ‘add network’ we create a simple network object.  Again we have some required fields and we find the same ipv4 and v6 options as the ‘add host’ call.



Argument

Require

Description

Name

Yes

Object name

Subnet

Yes / or #1

IPv4 or IPv6 address

Subnet4

Yes / or #1

IPv4 address

Subnet6

Yes / or #1

IPv6 address

Mask-length

Yes / or #2

IPv4 or IPv6 cidr mask length

Mask-length4

Yes / or #2

IPv4 mask length

Mask-length6

Yes / or #2

IPv6 mask length

Nat-setting

No



Tags

No

Collection of tag identifiers

Broadcast

No

Option to allow broadcast inclusion

Color

No



Comments

No



Groups

No

Any group memberships



Example






  1. Adding an access rule

   The rule we are going to create is one to allow SSH and HTTPS to the target server defined earlier from the network we just created. Given the number of API arguments I am simple going to refer to the reference guide. https://sc1.checkpoint.com/documents/latest/APIs/index.html#cli/add-access-rule~v1.7.1%20



Example output






And the full API command in txt:

mgmt_cli add access-rule layer "Network" position "top" name "SSH & HTTPS access to test host" action "Accept" destination "Test-Host-1" source "Admin_network" service.1 "SSH" service.2 "HTTPS"



Finally the finished rule.










Use cases:

  1. Lab setup
  2. New application onboarding
  3. Creating your own API process.
    1. Some Check Point customers have created their own process they build host and network objects create rules all via a home grown web service.
