Now you can use the new command "gw_mbash" and "g_mclish" to execute bash or clish commands on all gateway simultaneously from the management server. All you have to do is copy and paste the above lines to the management server. After that you have two new commands on the management server. Here you can now centrally execute simple commands on all gateways which are connected via SIC with the management.

You can quickly destroy your gateways if you enter the wrong commands!

Command syntax:

An example!

You want see the version of all gateway they are defined in the topology.

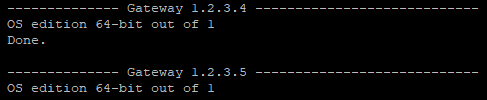

Now the command "show version os edition" is executed on all gateways and the output is displayed on the management server sorted according to the ip addresses of the gateways in the firewall topologie.

The same also works for the expert mode. For example:

Cppy and paste this lines to the management server or download the script "new_multi_commands.sh" and execute the script.

echo '#!/bin/bash' > /usr/local/bin/gw_mbash
echo 'if [ ! -f /var/log/g_gateway.txt ]; then' >> /usr/local/bin/gw_mbash
echo 'echo "First start \"gw_detect\" and\or edit the file \var\log\gw_gateway.txt manually. Add here all your gateway IP addresses."' >> /usr/local/bin/gw_mbash
echo 'else' >> /usr/local/bin/gw_mbash
echo 'HAtest="$@"' >> /usr/local/bin/gw_mbash
echo 'echo $HAtest > /var/log/g_command.txt;' >> /usr/local/bin/gw_mbash
echo 'while read line' >> /usr/local/bin/gw_mbash
echo 'do' >> /usr/local/bin/gw_mbash
echo 'if $CPDIR/bin/cprid_util getarch -server $line |grep "gaia" > /dev/null;' >> /usr/local/bin/gw_mbash
echo 'then' >> /usr/local/bin/gw_mbash
echo 'echo "--------- GAIA $line execute command: $HAtest"' >> /usr/local/bin/gw_mbash
echo '$CPDIR/bin/cprid_util -server $line putfile -local_file /var/log/g_command.txt -remote_file /var/log/g_command.txt;' >> /usr/local/bin/gw_mbash
echo '$CPDIR/bin/cprid_util -server $line -verbose rexec -rcmd /bin/bash -f /var/log/g_command.txt' >> /usr/local/bin/gw_mbash
echo 'else' >> /usr/local/bin/gw_mbash
echo 'echo "--------- STOP $line Error:  no SIC to gateway or no compatible gateway"' >> /usr/local/bin/gw_mbash
echo 'fi' >> /usr/local/bin/gw_mbash
echo 'done < /var/log/g_gateway.txt' >> /usr/local/bin/gw_mbash
echo 'fi' >> /usr/local/bin/gw_mbash
chmod +x /usr/local/bin/gw_mbash

echo '#!/bin/bash' > /usr/local/bin/gw_mclish
echo 'if [ ! -f /var/log/g_gateway.txt ]; then' >> /usr/local/bin/gw_mclish
echo 'echo "First start \"gw_detect\" and\or edit the file \var\log\gw_gateway.txt manually. Add here all your gateway IP addresses."' >> /usr/local/bin/gw_mclish
echo 'else' >> /usr/local/bin/gw_mclish
echo 'HAtest="$@"' >> /usr/local/bin/gw_mclish
echo 'echo $HAtest > /var/log/g_command.txt;' >> /usr/local/bin/gw_mclish
echo 'while read line' >> /usr/local/bin/gw_mclish
echo 'do' >> /usr/local/bin/gw_mclish
echo 'if $CPDIR/bin/cprid_util getarch -server $line |grep "gaia" > /dev/null;' >> /usr/local/bin/gw_mclish
echo 'then' >> /usr/local/bin/gw_mclish
echo 'echo "--------- GAIA $line execute command: $HAtest"' >> /usr/local/bin/gw_mclish
echo '$CPDIR/bin/cprid_util -server $line putfile -local_file /var/log/g_command.txt -remote_file /var/log/g_command.txt;' >> /usr/local/bin/gw_mclish
echo '$CPDIR/bin/cprid_util -server $line -verbose rexec -rcmd /bin/clish -f /var/log/g_command.txt' >> /usr/local/bin/gw_mclish
echo 'else' >> /usr/local/bin/gw_mclish
echo 'echo "--------- STOP $line Error:  no SIC to gateway or no compatible gateway"' >> /usr/local/bin/gw_mclish
echo 'fi' >> /usr/local/bin/gw_mclish
echo 'done < /var/log/g_gateway.txt' >> /usr/local/bin/gw_mclish
echo 'fi' >> /usr/local/bin/gw_mclish
chmod +x /usr/local/bin/gw_mclish

echo '#!/bin/bash' > /usr/local/bin/gw_detect
echo 'echo -n > /var/log/g_gateway.txt' >> /usr/local/bin/gw_detect
echo "more $FWDIR/conf/objects.C |grep -A 500 -B 1  ':type (gateway)'| sed -n '/gateway/,/:ipaddr (/p' | grep 'ipaddr (' | sed 's/^[ \t]*//' | sed 's/\:ipaddr (//' |sed 's/)//' > /var/log/g_gwl.txt" >> /usr/local/bin/gw_detect
echo 'while read line' >> /usr/local/bin/gw_detect
echo 'do' >> /usr/local/bin/gw_detect
echo 'if $CPDIR/bin/cprid_util getarch -server $line |grep "gaia" > /dev/null;' >> /usr/local/bin/gw_detect
echo 'then' >> /usr/local/bin/gw_detect
echo 'echo "--------- GAIA $line "' >> /usr/local/bin/gw_detect
echo 'echo "$line" >> /var/log/g_gateway.txt' >> /usr/local/bin/gw_detect
echo 'else' >> /usr/local/bin/gw_detect
echo 'echo "--------- STOP no SIC to gateway or no compatible gateway"' >> /usr/local/bin/gw_detect
echo 'fi' >> /usr/local/bin/gw_detect
echo 'done < /var/log/g_gwl.txt' >> /usr/local/bin/gw_detect
chmod +x /usr/local/bin/gw_detect

echo '#!/bin/bash' > /usr/local/bin/gw_detect80
echo 'echo -n > /var/log/g_gateway.txt' >> /usr/local/bin/gw_detect80
echo "mgmt_cli -r true show gateways-and-servers details-level full --format json | $CPDIR/jq/jq -r '.objects[] | select(.type | contains(\"Member\",\"simple-gateway\")) | .\"ipv4-address\"' |grep -v null|grep -v 0.0. > /var/log/g_gwl.txt" >> /usr/local/bin/gw_detect80
echo 'while read line' >> /usr/local/bin/gw_detect80
echo 'do' >> /usr/local/bin/gw_detect80
echo 'if $CPDIR/bin/cprid_util getarch -server $line |grep "gaia" > /dev/null;' >> /usr/local/bin/gw_detect80
echo 'then' >> /usr/local/bin/gw_detect80
echo 'echo "--------- GAIA $line "' >> /usr/local/bin/gw_detect80
echo 'echo "$line" >> /var/log/g_gateway.txt' >> /usr/local/bin/gw_detect80
echo 'else' >> /usr/local/bin/gw_detect80
echo 'echo "--------- STOP no SIC to gateway or no compatible gateway"' >> /usr/local/bin/gw_detect80
echo 'fi' >> /usr/local/bin/gw_detect80
echo 'done < /var/log/g_gwl.txt' >> /usr/local/bin/gw_detect80
chmod +x /usr/local/bin/gw_detect80

More "Easy Tools":

- Easy Backup Tool - (migrate export + all GAIA configs)                   -> Easy backup of all gateway GAIA configs + migrate export with one CLI command.
- Easy execute CLI commands on all gateways simultaneously        ->  Now you can use the new command to execute bash or clish commands on all gateway simultaneously.
- Easy execute CLI commands from management on gateways        -> Easy execute CLI commands from management on gateways
- Mobile User License Tool - replaced "dtps lic"                                   -> It displays all Secure Client, SSL VPN and Mobile Access Portal licenses in total (sum) on the SMS.
- Easy View Tool - (system infos from all gateways simultaneously) -> This toll shows you quickly an overview of status information of all your gateways with only one CLI command.

Versions:
v0.1 - 04-14-2019 - gw_multi_commands_v0.1.sh -> beta
v0.2 - 04-16-2019 - gw_multi_commands_v0.2.sh -> remove bugs
v0.3 - 04-17-2019 - gw_multi_commands_v0.3.sh -> split to two commands (gw_detect and the old commands)
v0.4 - 05-05-2019 - gw_multi_commands_v0.4.sh -> add command "gw_detect80"

Video tutorial:
