HealthCheck Point (HCP) - SmartConsole Extension

[Danny]

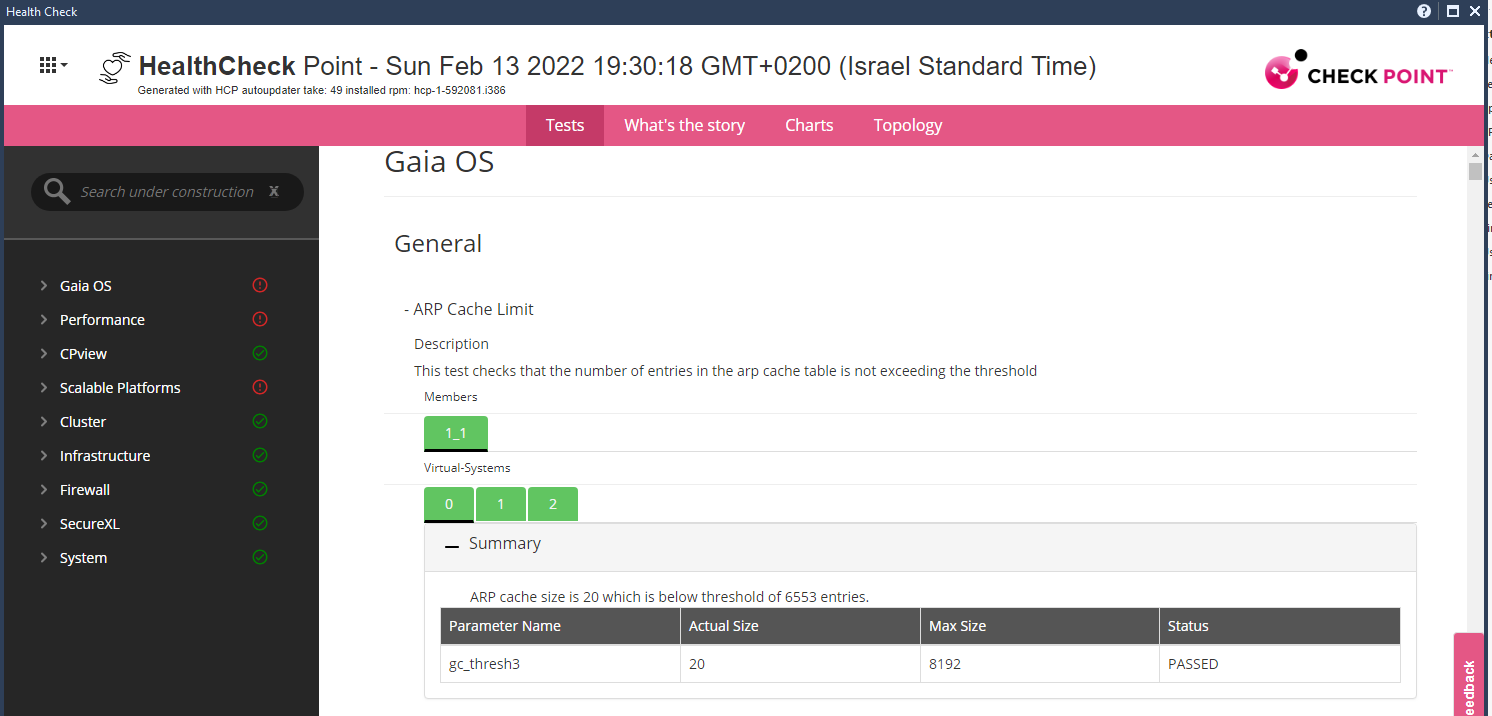

Official Check Point HealthCheck Point (HCP) SmartConsole Extension

Installation instructions: sk171436

Prerequisites:

1. Make sure the HCP package is installed on your Security Management Server
2. Run the "hcp -r all" command at least once on each Security Gateway you want to see the report from.

Activating Extension on Security Management

Connect to your Security Management Server via SSH and run:

1. # service hcp_ext start


2. # hcp --ext-update-reports all
   • You must run this command on every restart of the Security Management Server to collect a report from the newly created  Security Gateway.

Adding Extension in SmartConsole

1. Go to Manage & Settings -> Preference -> SmartConsole Extensions -> click "+":
2. Enter the following as URL:
   https://<your-management-ip>/ngm-management-app/hcp/extension.json

[George_Ellis]

FYI - As of R81,10 with Jumbo Take 95, this is now built into the system.  Use https://<deviceip>/hcp  .

[the_rock]

I prefer web one so much better, as whenever I used to do hcp -r all command, html would never work right. Web one is super user friendly...btw, included since the beginning in R81.20

Andy

[the_rock]

Another awesome extension @Danny

[the_rock]

Had some issues in R81.10 lab, but extension worked fine on R81.20...will try different R81.10 lab I have and report back.

Andy
